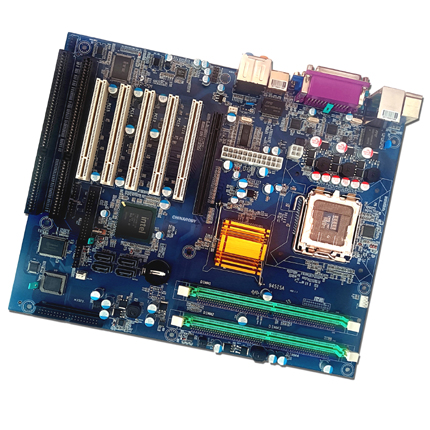

945 ISA Motherboard

Model: 945GV-2ISA

Profile :

-ISA Industrial motherboard Intel,945G ATX Board,945GC ISA Slot Mainboard
-ISA Mainboard ATX Motherboard,Compatible devices: Server,PC,Computer
-Chipset type: Intel 945GC Chipset
-Cpu model socket: LGA775 for Intel Pentium HT,Pentium D,Pentium 4,Celeron D,Conroce , Conroce L FSB 533/800/1066 CPU, Ram memory technology: 2*DDR2

Datasheet:

Processor
Socket: LGA775 for Intel Pentium HT,Pentium D,Pentium 4,Celeron D,Conroce , Conroce L FSB 533/800/1066 CPU
Chipset: Intel 945GC + ICH7 chipset
Memory: 2* DDR2 DIMM,support 400/533/667MHz ,MAX. 4GB

Ethernet: 2*Realtek RTL8111C Gbe Ethernet controllers
VGA: Onboard Intel GMA950 display card
Expansion:
5*PCI slot ,
1*PCIe 16x ,
2*ISA
Audio: Realtek ALC888 7.1‐channel High Definition Audio CODEC
Storage:
4*SATA,
1*IDE

Back I/O Interface
1*Keyboard interface
1*Mouse interface
2*USB
1* COM
1*VGA Port
1* PRN Interface
1*Audio interface(MIC, line out, line in)
2* RJ45 LAN port

BIOS Award BIOS with 4Mbit Flash ROM
Power Type ATX Input
Size 305mm(L) x 244 mm(W), Flex‐ATX

945 ISA Motherboard

Internal I/O interface
1* Fpanel
1* COM port
1*Front Audio
1*CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
4*USB
1* 24PIN + 4 PIN Power interface

Interface description

945 ISA Motherboard
